รายละเอียดสินค้า
ข้อมูลทั่วไปและสมรรถนะ / General Information and Performance
ชื่อผลิตภัณฑ์
Product Name
Eaton 9E UPS
หมายเลขแคตตาล็อก
Catalog Number
9E15KI
UPC 743172067692
การรับประกัน
Warranty
1 year
พิกัด VA
VA Rating
15 kVA
กำลังวัตต์
Wattage
12 kW
Power Factor เอาต์พุต
Output Power Factor
0.8
โทโพโลยี
Topology
Online/Double-conversion
ประสิทธิภาพที่โหลดสูงสุด
Efficiency at max. load
93%
รูปแบบ
Construction type
Free standing model
สี
Color
Black
ข้อมูลจำเพาะด้านอินพุต / Electrical Input Specifications
การเชื่อมต่ออินพุต
Input Connection
Hardwired/fixed connection
แรงดันไฟพิกัดอินพุต
Input Nominal Voltage
400V/230V
ช่วงแรงดันไฟอินพุต
Input Voltage Range
176-276 V (110-276 V with derating) for 1ph input
ความถี่พิกัด
Nominal Frequency
50/60 Hz
ช่วงความถี่อินพุต
Input Frequency Range
45-66Hz
Power Factor อินพุต
Input Power Factor
>.99
เฟส (อินพุต)
Phase (input)
3
ข้อมูลจำเพาะด้านเอาต์พุต / Electrical Output Specifications
แรงดันไฟพิกัดเอาต์พุต
Output Nominal Voltage
230V default (220/230/240V)
ช่วงแรงดันไฟเอาต์พุต
Output Voltage Range
220/230/240 V $\pm$ 2%
รูปแบบคลื่นเอาต์พุต
Output Waveform
Sine wave
Voltage Distortion Output (Linear Load) - Max
Voltage Distortion Output (Linear Load) - Max
3%
เฟส (เอาต์พุต)
Phase (output)
1
Internal Bypass
Internal Bypass
Yes
แบตเตอรี่ / Battery
จำนวนแบตเตอรี่
Battery Quantity
40
ข้อมูลจำเพาะแบตเตอรี่
Battery Rating
12 V / 7 Ah
ประเภทแบตเตอรี่
Battery Type
Sealed, lead-acid
แบตเตอรี่ทดแทน
Battery Replacement
Replacable batteries
ความสามารถในการเพิ่มแบตเตอรี่
Extended Battery Capability
Yes
การจัดการแบตเตอรี่
Battery Management
Automatic battery test
Deep discharge protection
การสื่อสารและซอฟต์แวร์ / Communications and Software
ส่วนติดต่อผู้ใช้
User Interface
LCD Display
พอร์ตสื่อสาร
Communication
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote power off
Communication slot
ช่องขยาย
Expansion Slots
One slot for optional communication card
ซอฟต์แวร์ที่เข้ากันได้
Software Compatibility
Eaton Intelligent Power Manager
Eaton Intelligent Power Protector
ฟังก์ชันปิดระบบอัตโนมัติ
Auto Shutdown Function
Yes
Potential Free Switch Contact
Potential Free Switch Contact
Yes
สภาพแวดล้อมและการรับรอง / Environmental and Certifications
ช่วงอุณหภูมิ
Temperature Range
0° to 40°C (32° to 104°F)
ความชื้นสัมพัทธ์
Relative Humidity
0-95% non-condensing
ระดับความสูง
Altitude
3000 m
ระดับเสียงรบกวน
Noise Level
<55 dB at 1 meter
การปฏิบัติตามข้อกำหนด
Compliances
CE Marked
TUV
การรับรอง
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
มิติและอื่น ๆ / Dimensions and Others
ความยาว/ความลึก
Product Length/Depth
70.6 cm
ความสูง
Product Height
81.55 cm
ความกว้าง
Product Width
35 cm
น้ำหนักผลิตภัณฑ์
Product Weight
145.22 kg
เนื้อหาในกล่อง
Package Contents
UPS
USB cable
Serial cable
User manual

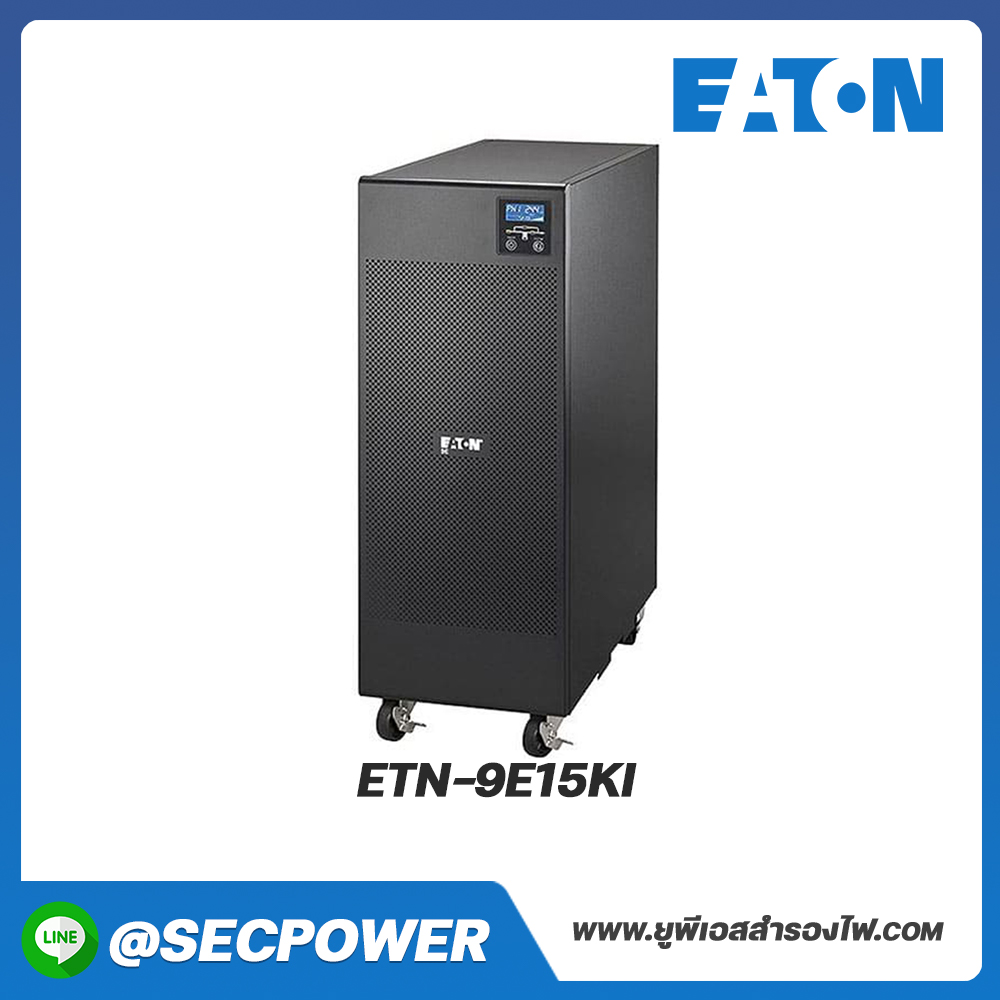

เครื่องสำรองไฟฟ้า Eaton รุ่น ETN-9E15Ki | 9105-52106
